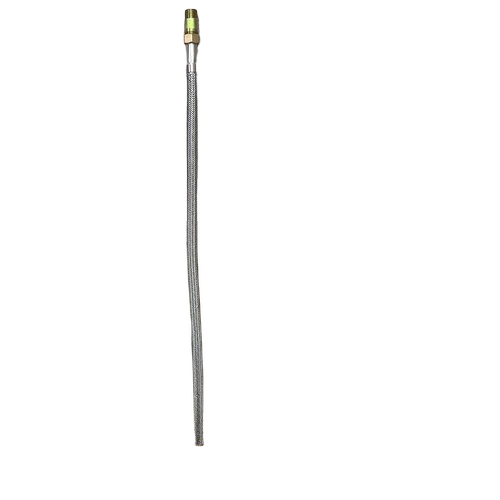

NEWAGE FIRE SPRINKLER HOSE BRAIDED
Product Details:
- Mounting Type Ceiling/Panel Suspended
- Coating Type Stainless Steel Braided
- Features Flexibility, Leakproof, Corrosion-Resistant
- Shape Flexible Hose
- Operating Pressure 12 bar (Max)
- Installation Type Suspended/False Ceiling Mounted
- Working Temperature -20C to +70C
1000 INR/Number
X
NEWAGE FIRE SPRINKLER HOSE BRAIDED Price And Quantity
- 1 Number
- 1000 INR/Number
- Above 500 psi
- 304 Stainless Steel
- 500 mm to 1800 mm (Standard lengths available)
- Varies with length; approx. 0.7 kg/m
- Corrugated stainless steel
- AISI 304/316 Stainless Steel
- Over 350 psi
- 100 mm
- 25+ years
- 1" BSP/NPT
- Meets NFPA 13, UL 2443 standards
NEWAGE FIRE SPRINKLER HOSE BRAIDED Product Specifications
- Flexibility, Leakproof, Corrosion-Resistant
- 25 mm (1 inch)
- Ceiling/Panel Suspended
- Stainless Steel Braided
- Sprinkler Hose
- 12 bar Max
- Dependent on Sprinkler Head
- Designed for Standard Sprinkler Flow
- Flexible Stainless Steel Braided Hose
- Class A, B, C
- Automatic
- Threaded
- Up to 68 LPM
- Automatic Fire Sprinkler Systems
- 12 bar (Max)
- Flexible Hose
- -20C to +70C
- Suspended/False Ceiling Mounted
- Above 500 psi
- 304 Stainless Steel
- 500 mm to 1800 mm (Standard lengths available)
- Varies with length; approx. 0.7 kg/m
- Corrugated stainless steel
- AISI 304/316 Stainless Steel
- Over 350 psi
- 100 mm
- 25+ years
- 1" BSP/NPT
- Meets NFPA 13, UL 2443 standards
Product Description
NewAge make UL Listed & FM Approved braided Flexible Sprinkler Hose 1500mm Length with 1" NPT inlet and 1/2" NPT outlet for Sprinkler. Pressure Rating is 200 psi.
Length Available is
- 700mm
- 1000mm
- 1200mm
- 1500mm
- 1800mm
Advanced Fire Protection for Modern Spaces
The flexible stainless steel braided design offers outstanding adaptability for building layouts, making the NEWAGE Fire Sprinkler Hose Braided suitable for false ceiling and suspended ceiling installations. Reliable at temperatures from -20C to +70C and pressures up to 12 bar, it is compatible with 1" BSP/NPT threaded connections and supports flow rates up to 68 LPM, tailored for standard sprinkler heads.
Long-Lasting and Reliable Performance
Built to last with a design life exceeding 25 years, this sprinkler hose resists corrosion and abrasion thanks to its high-quality stainless steel build. It is meticulously tested for high pressures and leakproof operation, ensuring safety and peace of mind for building occupants and property managers.
Compliance and Easy Installation
Meeting key international safety standards (NFPA 13, UL 2443), the hose guarantees regulatory compliance. Its flexible construction simplifies the installation process, especially in challenging or space-constrained environments, and minimizes the need for rigid pipe adjustments.
FAQ's of NEWAGE FIRE SPRINKLER HOSE BRAIDED:
Q: How is the NEWAGE Fire Sprinkler Hose Braided installed in building sprinkler systems?
A: The hose is designed for easy installation in suspended or false ceiling setups, connecting directly to standard 1" BSP/NPT threaded fittings. Its flexible, corrugated stainless steel design allows it to adapt around obstructions, simplifying alignment with sprinkler heads without rigid piping modifications.Q: What are the main benefits of using this braided stainless steel sprinkler hose over traditional rigid pipes?
A: This hose offers enhanced flexibility, making installation faster and more adaptable, especially in complex ceiling spaces. It also provides superior leakproof performance, corrosion resistance, and longevity, reducing maintenance needs and ensuring reliable operation in automatic fire sprinkler systems.Q: When should I choose the braided hose over other types of fire sprinkler connections?
A: The braided hose is ideal for new installations or retrofit projects where flexibility, easy alignment, and reduced installation time are priorities-particularly in spaces with suspended or false ceilings, or where traditional rigid piping is difficult to install.Q: Where is this product commonly used, and what types of fires does it address?
A: The NEWAGE Fire Sprinkler Hose Braided is commonly used in commercial buildings, office complexes, malls, and industrial facilities. It is suited for automatic sprinkler systems targeting Class A (combustibles), B (flammable liquids), and C (electrical) fires.Q: What process is followed to ensure the hose meets safety standards and performance requirements?
A: Each hose undergoes rigorous pressure testing-over 350 psi-for leakproof performance and withstands burst pressures above 500 psi. Additionally, it is manufactured to comply with international standards such as NFPA 13 and UL 2443, ensuring consistent quality and reliability.Q: How does the hose's flexibility improve usage and coverage in fire sprinkler systems?
A: Its flexible stainless steel construction allows for quick adjustments to the exact position of sprinkler heads, improving coverage and ensuring optimal protection of the designated area, especially when obstacles or structural limitations are present.Tell us about your requirement
